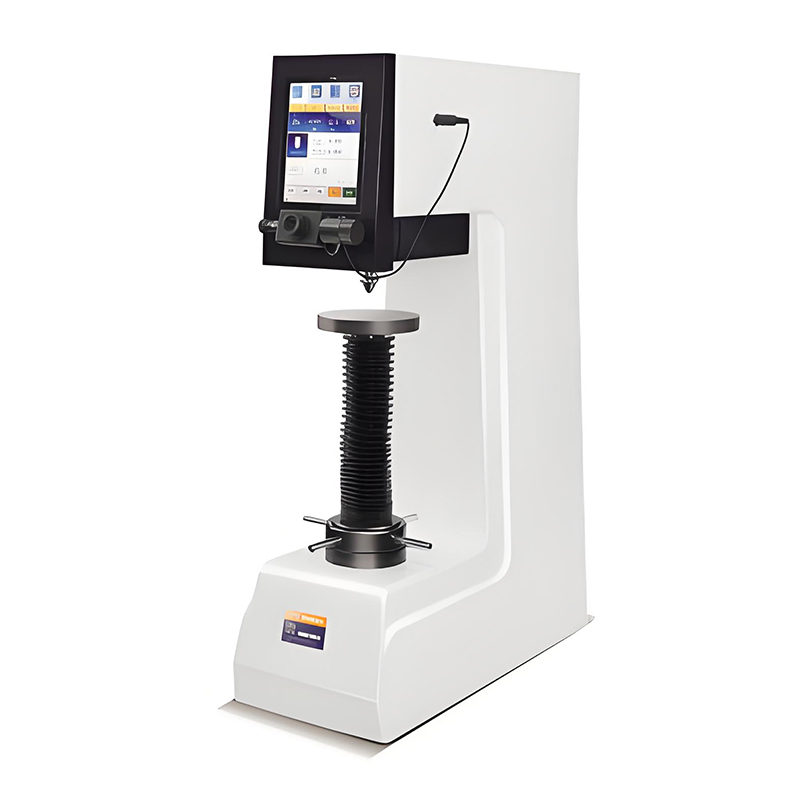

HBS-3000ET Touch Screen Digital Display Brinell Hardness Tester

Product parameters:

Weight: 210kg

HBS-3000ET Touch Screen Digital Display Brinell Hardness Tester is a 210kg Brinell hardness tester with a touch screen digital display interface that complies with DIN EN ISO 6506, ASTM E10 and GB/T231-2018 standards.

The equipment is equipped with a manual turret system, supports automatic mapping, and can store more than 2,000 sets of test data.

An optional CCD image processing system and an integrated wireless Bluetooth printing module are available for easy data output.

This hardness tester is suitable for laboratory testing of conventional metal materials.

The test accuracy meets industrial standard requirements and the operating procedures comply with standard hardness test specifications.

01Details 02Quotation request

1. The body is cast in a single pass from high-quality cast iron and finished with an automotive paint finish, resulting in a sleek and beautiful appearance.
2. A convenient control system automatically converts units across the entire hardness scale.
3. Electronic closed-loop control of test force application ensures fully automated loading, holding, and unloading operations.
4. Setting maximum and minimum hardness values ​​is possible, and an alarm sounds when the test value exceeds the set range.
5. Software-defined hardness correction function allows for direct correction of hardness values ​​within a specified range.
6. A database function automatically groups and saves test data, with each group holding 10 data points, allowing for the storage of over 2,000 data points.
7. A hardness curve display intuitively displays hardness value changes.
8. Printer available, with data output via RS232 and USB (optional).
9. Optional CCD image processing system available.
10. Accuracy meets GB/T231.2, ISO6506-2, and ASTM E10 standards.
