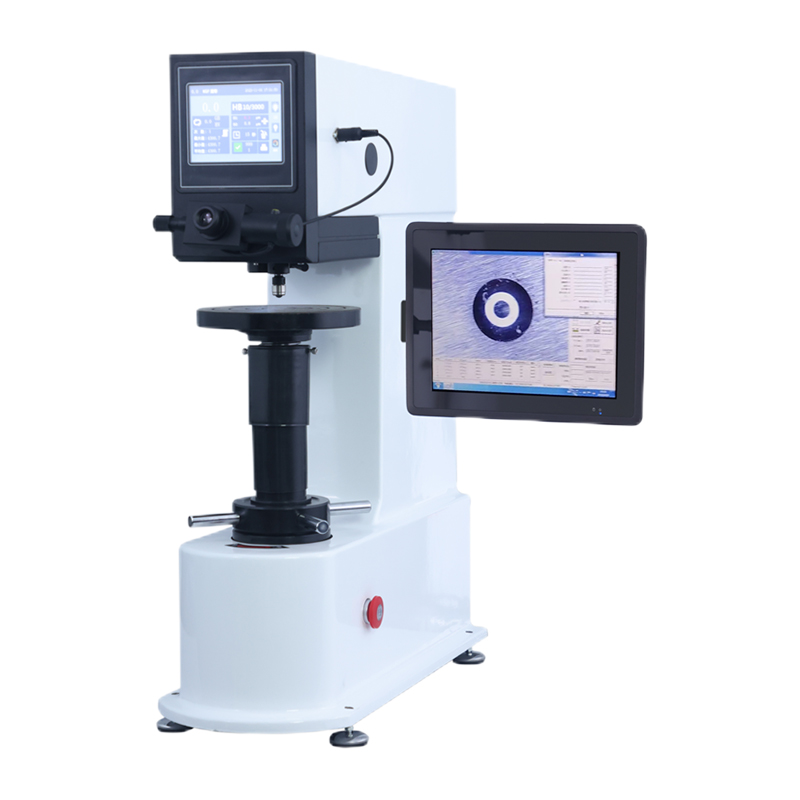

HBS-3000MVZ Digital Brinell Hardness Tester with Dual Touchscreens

Product parameters:

The HBS-3000MVZ is an electromechanical Brinell hardness tester featuring a digital touchscreen display and a vision-based measurement system. It integrates precision mechanical engineering with a microcomputer-controlled closed-loop system. The instrument eliminates the need for deadweights; instead, it applies and removes test forces electrically, utilizing a high-precision load cell (accuracy within 0.5%) for feedback.
The CPU controls the process and automatically compensates for any loss of test force during testing. Indentation depth can be measured directly on the instrument using a micrometer eyepiece.

01Details 02Quotation request

A large screen provides a clear, intuitive display of test force, indentation length, dwell time, number of measurements, scale conversions, and date/time. Operation is simple: pressing the eyepiece button measures the indentation, and the hardness value is automatically calculated and displayed. Results can be saved, viewed in a tabular format, or printed via the built-in printer. With its integrated computer-controlled measurement system, indentation measurement can be performed either manually or automatically, minimizing human error; data reports can be saved and printed. The device supports 11 test force levels and 10 different Brinell hardness scales, offering a wide testing range. The robust housing is cast as a single unit using a special sand-casting process, ensuring structural stability that prevents deformation of the closed-loop sensor and control system. The system delivers exceptional testing accuracy, stability, rapid response, and high efficiency. The machine automatically switches between objectives and indenters and performs electronic load application and removal, replacing traditional pre-loading methods. The loading process is initiated with a single button press and is microcomputer-controlled with automatic force compensation to ensure accuracy. Quiet operation makes it ideal for use in various laboratory environments.
The device can also be used with computer-based Brinell image measurement software to significantly enhance work efficiency.

Product Model HBS-3000MVZ
Bülow Scale HBW2.5/62.5 HBW10/100 HBW2.5/187.5 HBW5/125 HBW10/250 HBW10/500 HBW5/750 HBW10/1000 HBW10/1500 HBW10/3000
Test Force 62.5KGF(612.9N)、100KGF(980.7N)、125KGF(1226M)、187.5KGF(1839N)、250KGF(2452N)、500KGF(4903N)、750KGF(7355N)、1000KGF(8907N)、1500KGF(14710N)、3000KGF(29420N)
Maximum Height of Specimen 200MM
Minimum Unit of Measurement 0.625 μ M
Hold-Load Time 0-60S
Hardnesstest Range 8-650HBW
Total Magnification 15X
Implementation Standards EN ISO 6507、EN ISO 6506、ASTM E-384、ASTM E-10-08、ASTM E-384 GB/T231.2、JJG150
Distance Between Pressure Head and Outer Wall 140MM
Hardness Reading LCD Display (Built-In Printer)
Power Supply AC220V,50~60HZ
External Dimensions Machine Dimensions:620350750MM; Wooden Crate Dimensions:715465950MM; Optional Exportwooden Crate Dimensions:745495860MM.
Main Unit Weight Net Weight Approximately 138KG, Accessories Box Weight Approximately 5.5KG, Total Weight Including Packaging Approximately 159 KG, Export Wooden Crate Total Weight Approximately 169KG.
