VHBS-3000AET Visual Brinell Hardness Tester

Product parameters:

Weight: 160kg

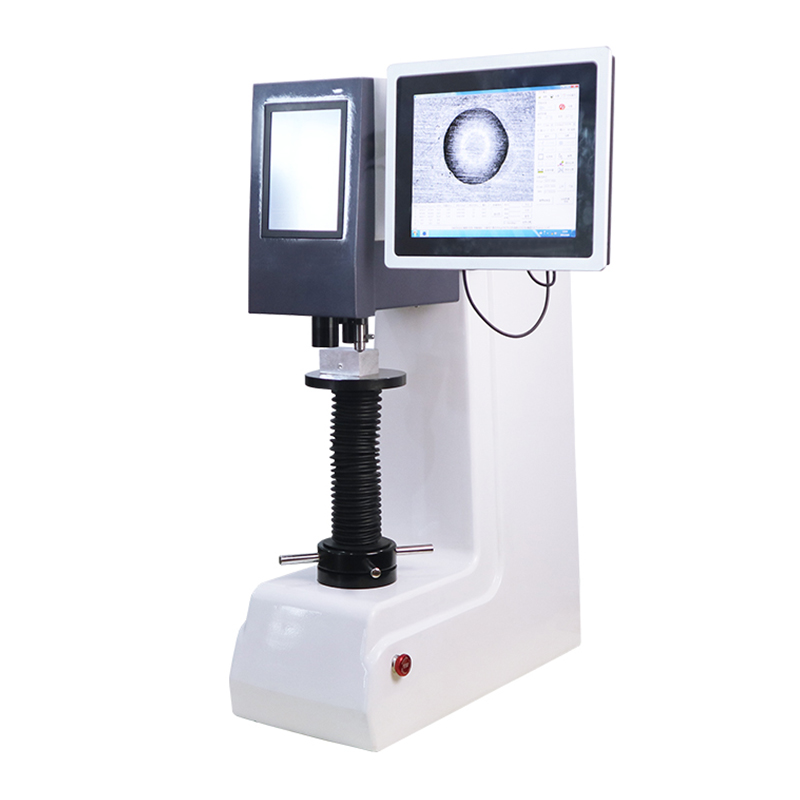

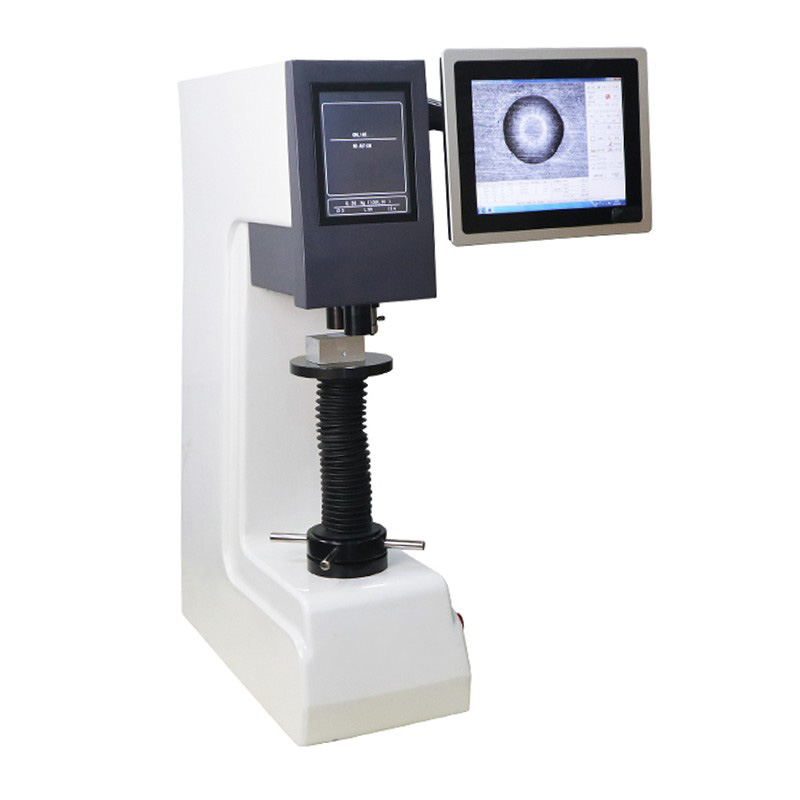

VHBS-3000AET Visual Brinell Hardness Tester is a Brinell hardness tester with an integrated visual inspection system.

The whole machine weighs 160kg. The equipment is equipped with an industrial-grade camera and a high-definition optical dual objective lens.

Combined with CCD image processing technology, it can realize automatic measurement and analysis of indentations. It has a built-in 8-inch touch screen industrial tablet computer and supports storage and management of more than 2,000 sets of test data. The system adopts digital processing, and the computing efficiency meets the needs of conventional industrial inspection.

It is suitable for metal material hardness testing in laboratories or production sites.

The functional design of the equipment meets the basic requirements of the standard Brinell hardness test method.

01Details 02Quotation request

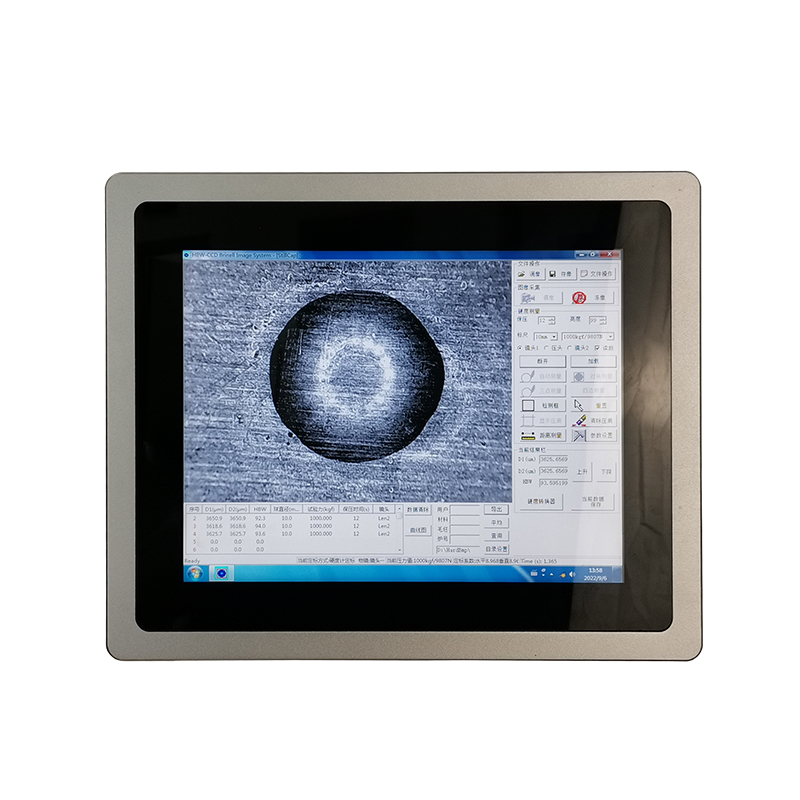

1. An industrial tablet computer with a built-in industrial-grade camera is mounted on the side of the machine. Using CCD image processing software, data and images can be directly exported, allowing for both manual and automatic image measurement, making it quick and convenient.
2. The machine body is cast in a single pass from high-quality cast iron and finished with an automotive paint finish, resulting in a sleek and beautiful appearance.
3. An automatic turret function automatically switches between the indenter and the lens, enhancing ease of use.
4. Setting maximum and minimum hardness values ​​is possible, and an alarm sounds when the test value exceeds the set range.
5. Software hardness correction function allows for direct correction of hardness values ​​within a certain range.
6. A database function is included to monitor the hardness of the machine. Test data is automatically saved in groups, with each group containing 10 data points, allowing for over 2,000 data points to be saved.
7. A hardness curve display allows for intuitive visualization of hardness value changes.
8. Automatic unit conversion for the entire hardness scale.
9. Electronic closed-loop control of test force application enables fully automated loading, holding, and unloading operations.
10. Equipped with high-definition dual objective lenses, it can measure indentations of varying diameters at various standard test forces.
11. Data can be output via RS232 and USB (optional).
12. Accuracy complies with GB/T231.2, ISO6506-2, and ASTM E10 standards.
