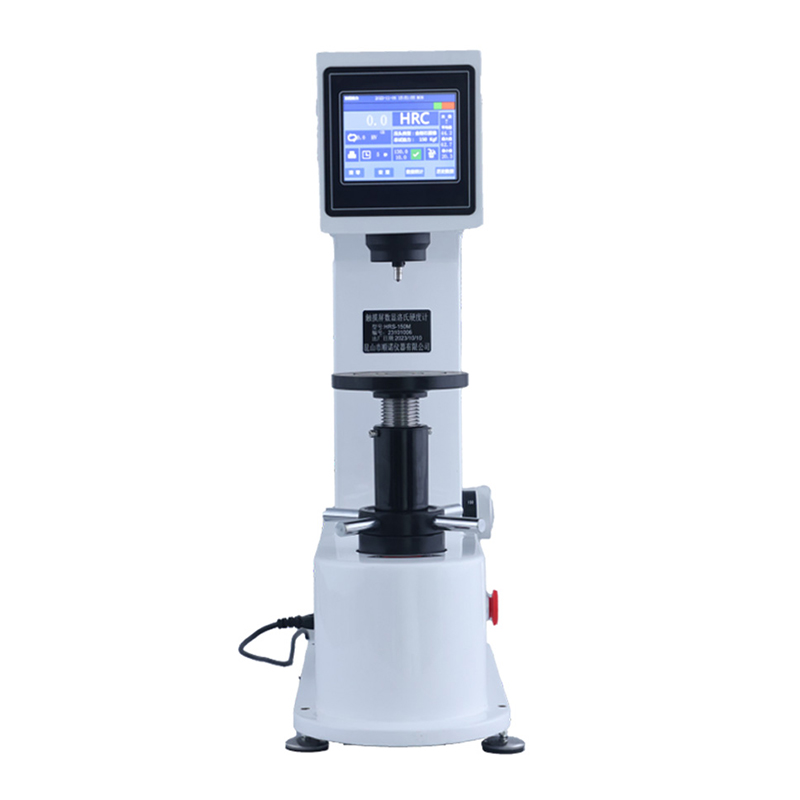

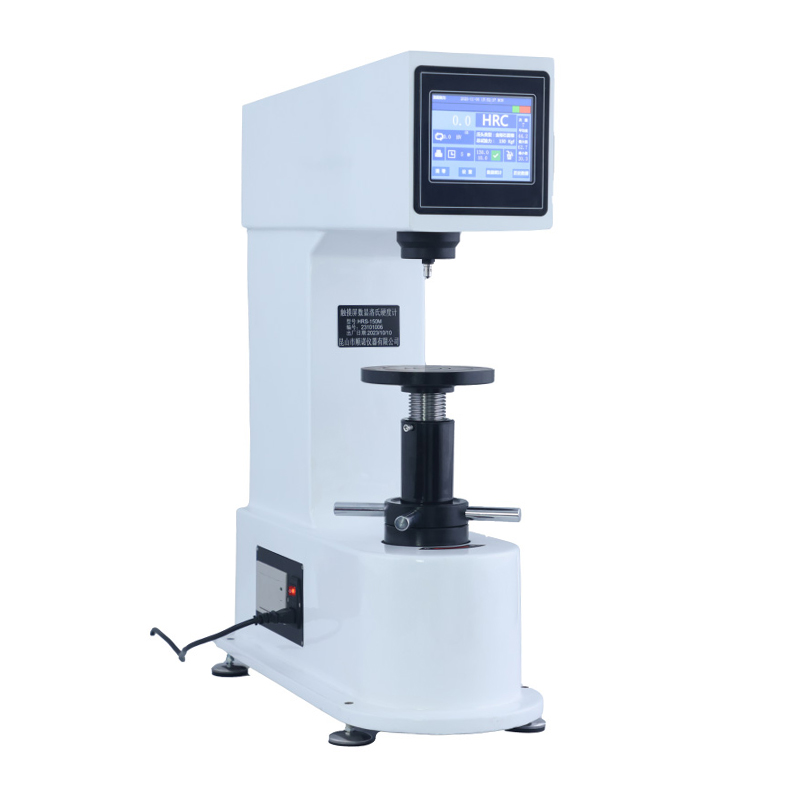

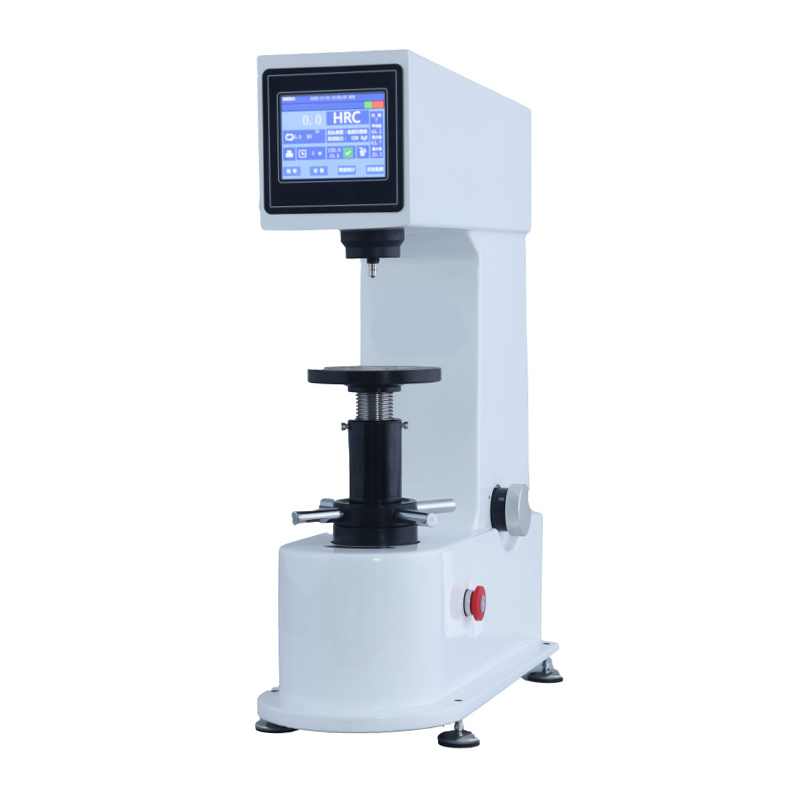

CHRS-150M Touchscreen Rockwell Hardness Tester

Product parameters:

The CHRS-150M fully automatic touchscreen Rockwell hardness tester is a high-precision instrument featuring a large digital display and a new, large-format LCD touchscreen with a menu-driven interface. It supports hardness testing across the full range of Rockwell scales, including standard Rockwell, Superficial Rockwell, and Plastic Rockwell.
The device utilizes sensor-based closed-loop control technology and automatic indenter descent, eliminating the need for manual preliminary test force application. A single-button operation automatically handles the application of preliminary and main test forces, as well as measurement and digital output of hardness results. It features automatic measurement error correction and hardness unit conversion. A built-in printer allows for direct test report printing, and a USB interface supports data transfer to a computer (USB is optional).
The main body is manufactured using an integrated sand-casting process; precision machining of critical bores ensures strict concentricity, while single-pass milling guarantees surface flatness. The drive lead screw is precision-ground to ensure smooth, drift-free vertical movement. Specialized processing throughout the machine ensures superior testing accuracy and operational stability.

01Details 02Quotation request

Reading resolution is 0.1 Rockwell units, with a repeatability of ±0.5 units. The preliminary test force is 10 kgf (98.07 N), with three selectable main test force levels: 60 kgf (588 N), 100 kgf (980 N), and 150 kgf (1471 N). It covers a comprehensive range of Rockwell scales—including HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, and HRK—offering broad testing versatility. Dwell time is adjustable from 0 to 60 seconds, and the system supports automatic conversion to Superficial Rockwell, Brinell, and Vickers hardness scales. The maximum allowable specimen height is 225 mm. The device complies with national standards GB/T 230.1, GB/T 230.2, and JJG 112. Verification regulation.
Suitable for Rockwell hardness testing of ferrous metals, non-ferrous metals, and non-metallic materials, this instrument is widely used for testing samples such as quenched, tempered, and annealed steels, chilled castings, malleable castings, cemented carbides, aluminum alloys, copper, bearing steel, hard plastics, hard rubber, aluminum, tin, low-carbon steel, synthetic resins, and friction materials. It is a high-performance hardness testing instrument designed for factory quality control and laboratories in research institutions and universities.

Product Model CHRS-150M
Reading Accuracy 0.1 Degrees
Repeatability ±0.5 Degrees
Initial Test Force 10KGF (98.07N)
Test Force 60KGF (588N), 100KGF (980N), 150KGF (1471N)
Rockwell Scale HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
Test Range HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:50-115, HRM:50-115, HRR:50-115
Hold-Load Time 0-60S
Implementation Standards GB/T230.1 GB/T230.2 National Standard
JJG112 Verification Procedure
Convert Scale Surface Rockwell, Brinell, Vickers
Hardness Reading Large Screen Digital Display
Data Output Built-In Printer USB Interface (Optional)
Maximum Height Of Specimen 225MM
