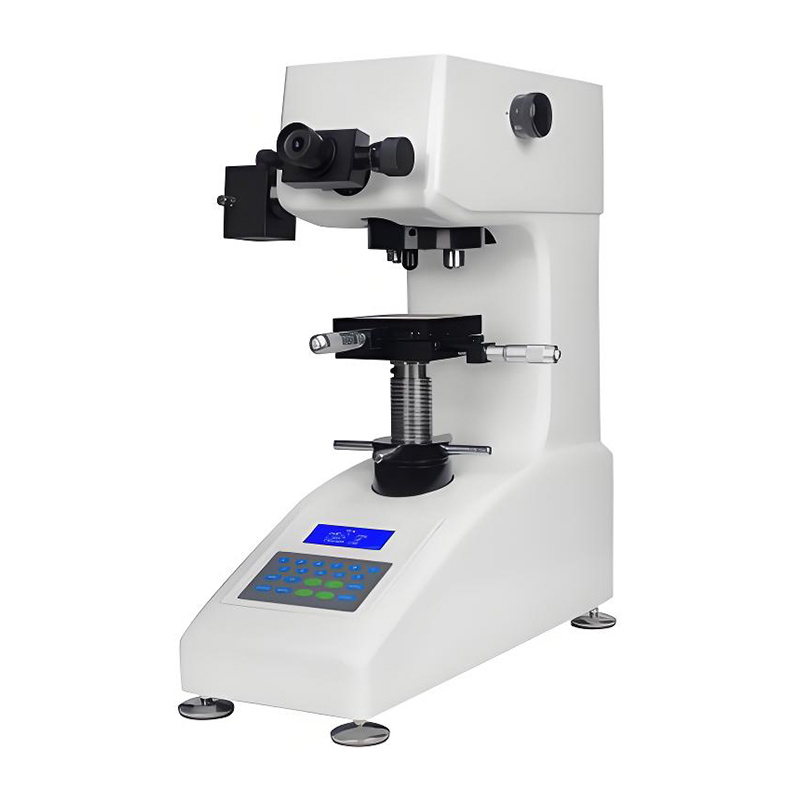

HV-1000Z Hand Disc Microhardness Tester

Product parameters:

HV-1000Z is a manually operated microhardness tester equipped with an automatic turret system and LCD display.

The device has a measurement range of 0-3000HV, the minimum measurement unit can reach 0.25μm, and uses an adjustable brightness light source. This hardness tester meets the standard microhardness test requirements and is suitable for laboratory routine material hardness testing.

The product structure design focuses on the realization of basic test functions and can meet the microhardness measurement needs of materials such as metals and ceramics.

The equipment operation follows the standard hardness test process, and the measurement accuracy meets industry specifications.

01Details 02Quotation request

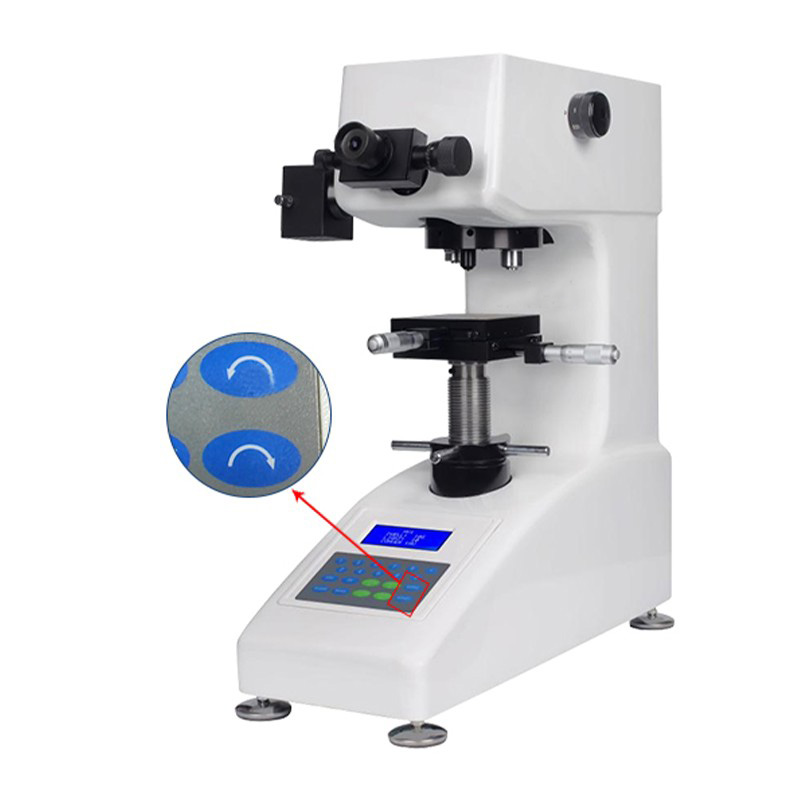

The instrument features an LCD display and switchable hardness scales between Vickers (HV) and Knoop (HK). The test process is automated and easy to operate. It features a high-definition optical system, a 20-level adjustable light source brightness, and a conversion function for multiple hardness scales. Diagonal lengths D1 and D2 are measured using a micrometer eyepiece, and hardness values ​​are displayed on the LCD after key input. The automatic turret-mounted objective lens and indenter automatically switch and position for precise positioning. The integrated cast aluminum body resists deformation and shifting, and the weight-loading structure ensures stable performance, high measurement accuracy, and excellent repeatability.
