MPD‑2S Semi-automatic Dual-disc Metallographic Grinding and Polishing Machine

Product parameters:

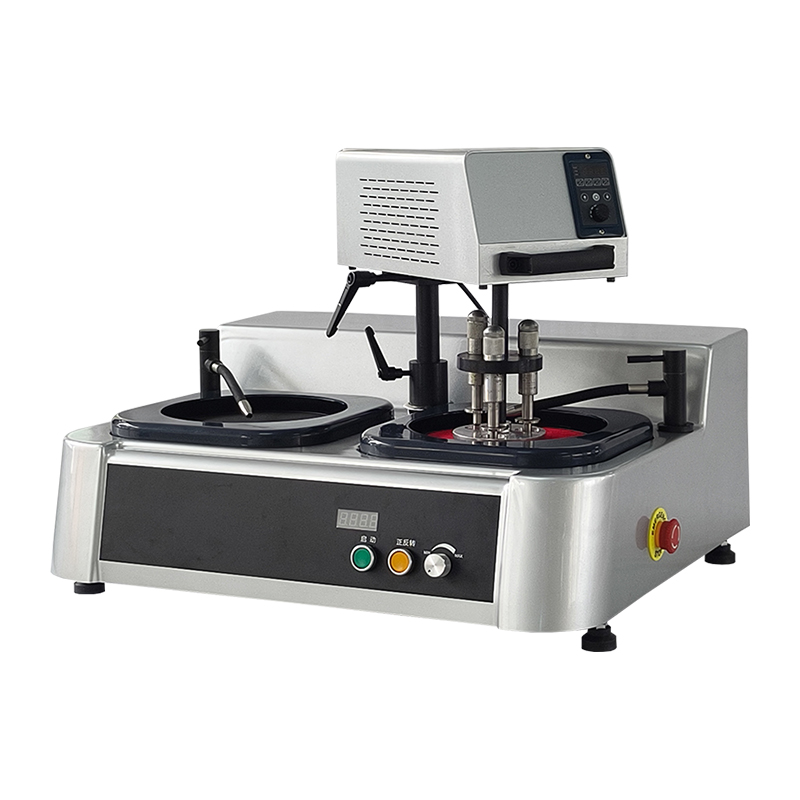

The MPD-2S is a dual-disc, semi-automatic metallographic grinding and polishing machine. Its dual-station design supports simultaneous operation by two users, significantly boosting sample preparation efficiency. It is primarily used for the pre-grinding, fine grinding, and polishing of various metal metallographic samples, producing flat, damage-free surfaces suitable for subsequent metallographic observation and analysis.
The main unit is powered by a 750W motor equipped with a variable frequency drive (VFD) for stepless speed control. The grinding/polishing discs operate within a speed range of 0–1500 rpm and support both clockwise and counter-clockwise rotation, allowing for flexible speed adjustments based on abrasive grit size and sample material. It is paired with an MPT semi-automatic grinding/polishing head (400W power, 10–120 rpm rotation speed) that utilizes a spiral pressurization mechanism. Pressure at the single station can be precisely adjusted between 0 and 40N, and the unit can hold 1–3 samples at a time, enabling simultaneous grinding and polishing. This minimizes surface variations caused by manual handling and ensures greater consistency in sample preparation.

01Details 02Quotation request

The machine features an integrated circulating cooling water system that continuously rinses and cools the samples during processing, effectively dissipating grinding heat to prevent thermal damage and preserve the material's original microstructure. It operates on a 220V/50Hz power supply, measures 710mm × 600mm × 270mm, and weighs 63kg; the robust structure ensures stable operation with minimal vibration. The standard polishing disc diameter is Φ230mm, with an optional Φ203mm disc available upon request.
The semi-automatic spiral pressurization design combines the flexibility of manual operation with reduced physical strain, offering ease of use alongside reliable, durable performance. It is an ideal pre-processing solution for metallographic sample preparation in corporate quality control laboratories, research institutes, and university laboratories.

Parameter Item MPD-1S (Single Disc) MPD-2S (Dual Disc)
Core Features Semi-automatic, screw pressurization, stepless speed regulation, forward & reverse rotation Semi-automatic, screw pressurization, stepless speed regulation, forward & reverse rotation
Polishing Disc Diameter φ230mm (203mm optional) φ230mm (203mm optional)
Rotating Speed 0-1500 rpm 0-1500 rpm
Working Voltage 220V 50Hz 220V 50Hz
Motor Specification Main motor: 750W, grinding head motor: 400W Main motor: 750W, grinding head motor: 400W

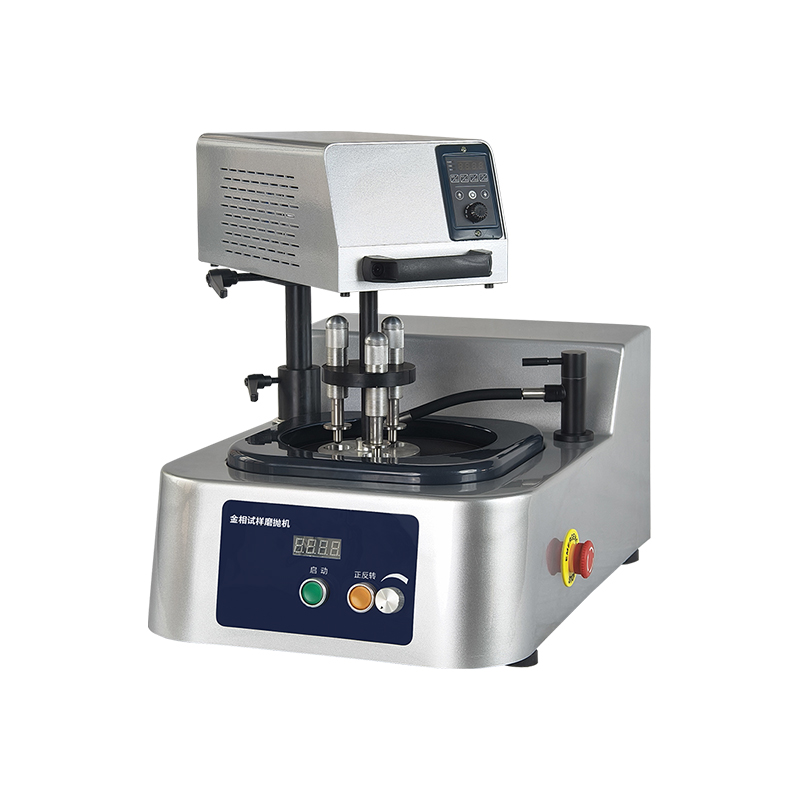

Overall Dimensions 400mm×600mm×270mm 710mm×600mm×270mm
Net Weight 45kg 63kg

Power Supply 220V 50Hz (refer to the input voltage nameplate on the device)
Operating Rotating Speed 10-120 r/min
Force Applied on Each Specimen 0~40N
Quantity of Specimens Prepared in One Batch 1-3 pcs
Net Weight 15kg
