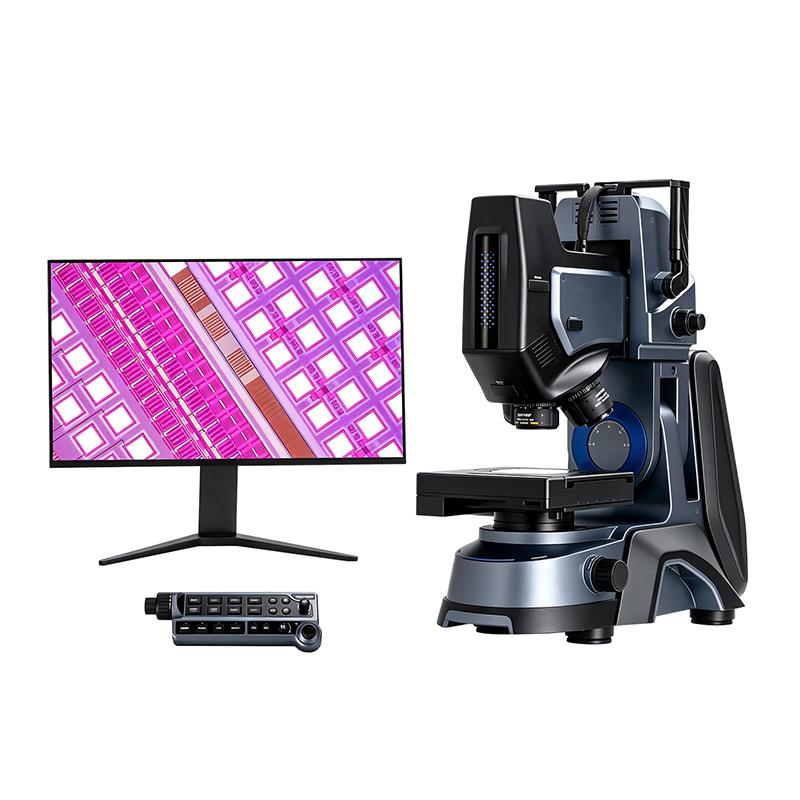

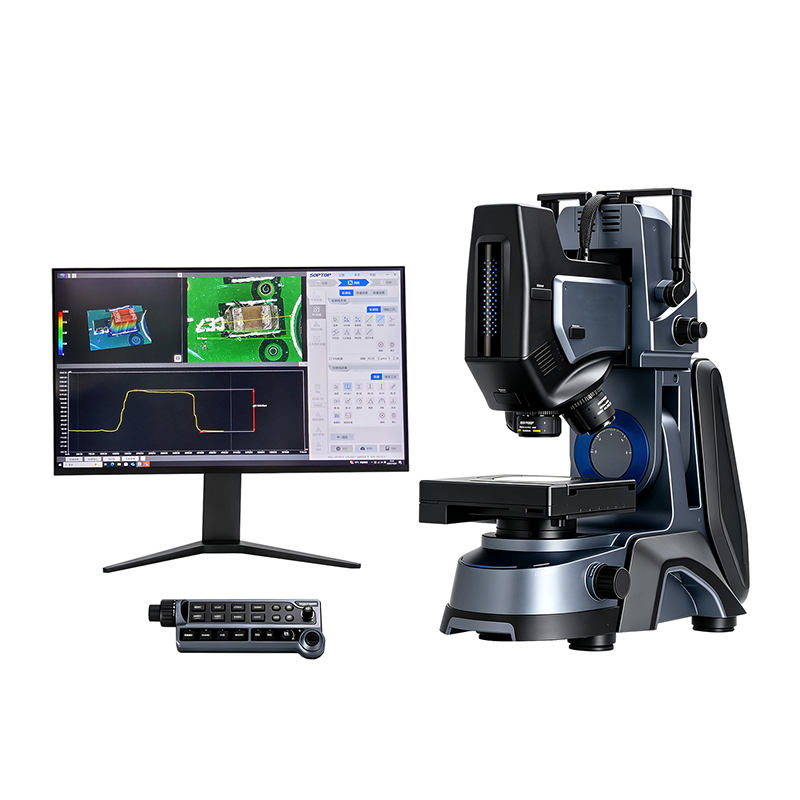

DMS1000 3D Microscope with Extended Depth of Field

Product parameters:

This next-generation 3D ultra-deep-focus microscope delivers exceptional high-resolution imaging and a seamless user experience. Integrating a telecentric continuous-zoom optical system, multi-mode illumination, a high-precision motorized motion mechanism, and powerful analysis software, it provides a comprehensive digital solution for precision inspection and topographic analysis.
Intelligent Integrated Control System
Core operations—including magnification switching, focus adjustment, stage movement, and angular tilting—are fully motorized. The system supports multiple control methods (controller, handwheel, and software) and enables functional linkage between components. Magnification switching is motorized and paired with a dual Z-axis mechanism: the upper Z-axis offers a 51mm travel range with 0.1μm focusing resolution, while the lower Z-axis offers a 50mm range. This design ensures simple, efficient operation and significantly reduces human error.

01Details 02Quotation request

Clear Visualization of Fine Topography and Flexible Multi-Dimensional Observation
Equipped with a professional telecentric continuous-zoom optical system, the microscope offers a total magnification range of 20–7500X, allowing for rapid switching between high and low magnifications. It features diverse illumination options—including coaxial incident, coaxial sheet, ring, segmented ring, hybrid, and transmitted lighting—to meet the observation needs of samples with varying materials and surface characteristics.
It utilizes a high-precision XYZ motorized stage (230×245mm surface) with a maximum travel range of 100×100mm and a load capacity of 5kg. Both the stage and the microscope frame support ±90° rotation and tilt with angle detection, enabling comprehensive, multi-angle observation of surface irregularities, crevices, and cross-sections to capture intricate micro-topographic details. Various industrial camera options are available, supporting resolutions up to 12 megapixels and outputting high-frame-rate, high-definition images for clear, fluid visuals.

Superior Image Processing and Revolutionary Multi-Dimensional Measurement
Powered by dedicated professional software, the system balances deep-focus and high-resolution imaging capabilities, enabling one-click generation of both 2D planar and 3D volumetric images. It supports fully automated 2D and 3D stitching scans, with a maximum stitched resolution of 60,000×60,000 pixels. ...pixels, supporting multi-region imaging.
Its capabilities encompass a wide range of inspection functions—including rapid measurement, cross-field-of-view measurement, planar measurement, point-height measurement, automatic measurement, 3D measurement, profile measurement, and particle counting—enabling efficient analysis of dimensions, heights, profiles, and particle statistics.
The system features a 28-inch 4K ultra-high-definition display, a high-performance i7 processor, 32GB of RAM, and a dual-drive storage configuration (SSD + HDD). It supports a wide input voltage range (100–240 VAC) and measures 615 x 346 x 691 mm, making it suitable for environments such as laboratories and quality inspection workshops; it is widely used in fields including metallographic analysis, component inspection, semiconductors, and materials research.

Optical System Telecentric Continuous Zoom System
Overall Magnification Range 20-7500X
Magnification Switch Mode Electric Switching
Camera 1/1.8 inch, 3.2MP, max frame rate 50fps
1/1.8 inch, 5MP, max frame rate 42fps
1/1.7 inch, 12MP, max frame rate 30fps
Illumination Modes Coaxial epi-illumination, coaxial slice illumination, ring illumination, zoned ring illumination, mixed illumination, transmitted illumination
Sample Stage Stage Size 230×245mm
Travel Range Max. 100×100mm
Rotation Angle (with Angle Recognition) Max. ±90°
Load Capacity 5Kg
Microscope Stand Upper Z-axis Travel 51mm (focus Z-axis resolution 0.1μm)
Upper Z-axis Control Mode Electric, handwheel, controller & software control
Lower Z-axis Travel 50mm
Lower Z-axis Control Mode Electric & handwheel control
Tilt Angle (with Angle Recognition) ±90°
Controller Realizes coordinated functional control of all components
Computer 28-inch 4K UHD LCD monitor; CPU: i7; RAM: 32G; Storage: SSD + HDD
Power Supply 100-240VAC, 50/60Hz
Equipment Dimension 615×346×691mm (computer and controller excluded)

Imaging 2D imaging, 3D imaging, image processing, automatic 2D/3D stitching scanning (max stitching pixel:60000×60000), multi-area shooting
Measurement Quick measurement, cross-field measurement, planar measurement, point height measurement, automatic measurement, 3D measurement, contour measurement, particle counting
